When you have an idea to buy a 數控雕刻機, how many axis do you need for the 數控雕刻機套件? It's a common problem for every 數控雕刻機 buyer, so, let's start to make a comparison of 3 axis, 4 axis and 5 axis 數控雕刻機.
Understand 3 Axis, 4th Axis, 4 Axis, and 5 Axis for 數控雕刻機 Kits

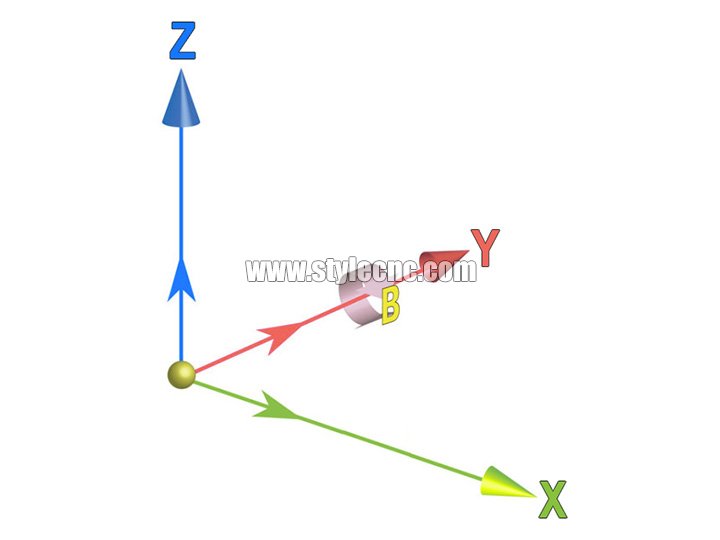

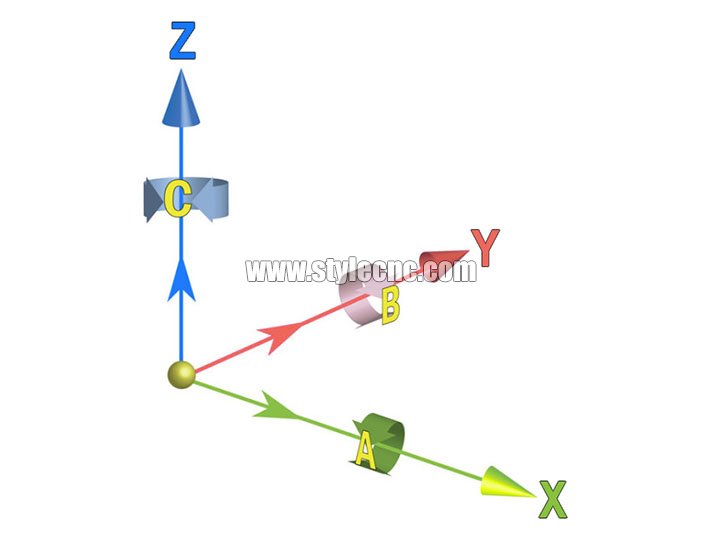

5軸：XYZAB、XYZAC、XYZBC（主軸可左右旋轉 180° 大約。）
4軸：XYZA、XYZB、XYZC（4軸聯動）
第四軸：YZA、XZA（4軸聯動）
3軸：XYZ（3軸聯動）

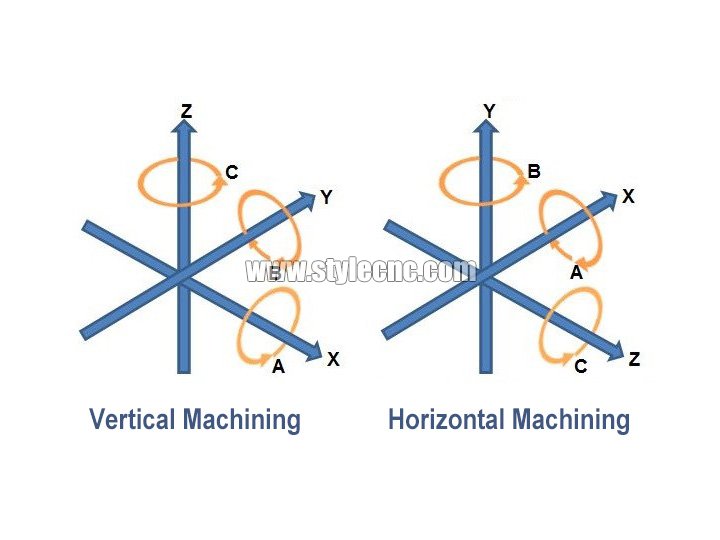

A、B或C軸分別對應X、Y、Z旋轉軸。

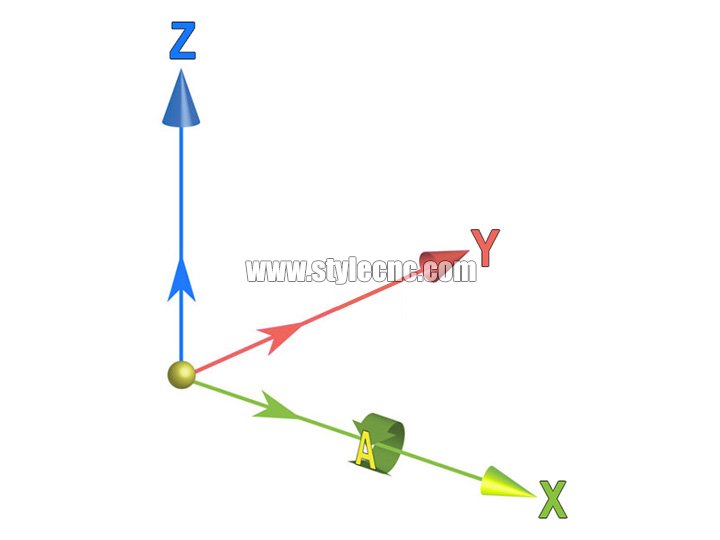

四軸數控雕刻機
These specific 數控雕刻機 can go along 3 different axis at the same time.

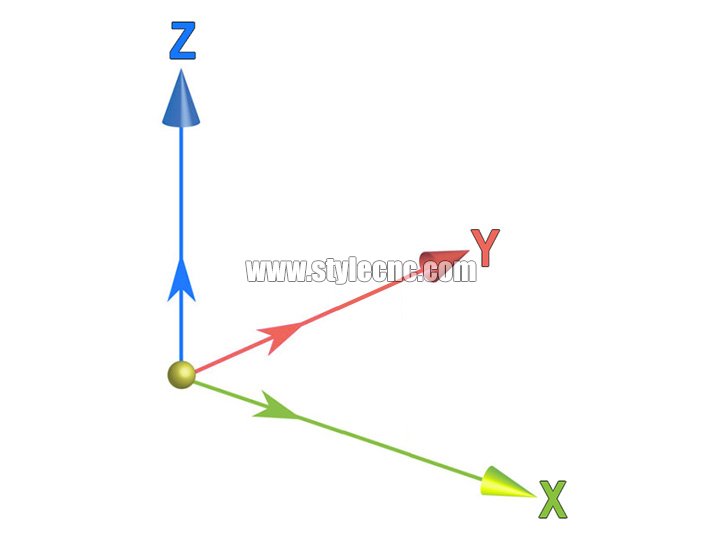

X 軸：從左到右
Y 軸：從前到后
Z軸：上下
3 axis 數控雕刻機 moving 3 axis at the same time; the X-axis, the Y-axis, and the Z-axis. Cutting along the X-axis moves the router bit from left to right, cutting along the Y-axis moves it from front to back, and cutting across the Z-axis moves it up and down. These machines are used primarily for cutting flat, 2D and 2.5D parts. Whether it is flat carving or round carving, you can think of it as flat carving, it is calculated according to the pulse.
第四軸數控雕刻機

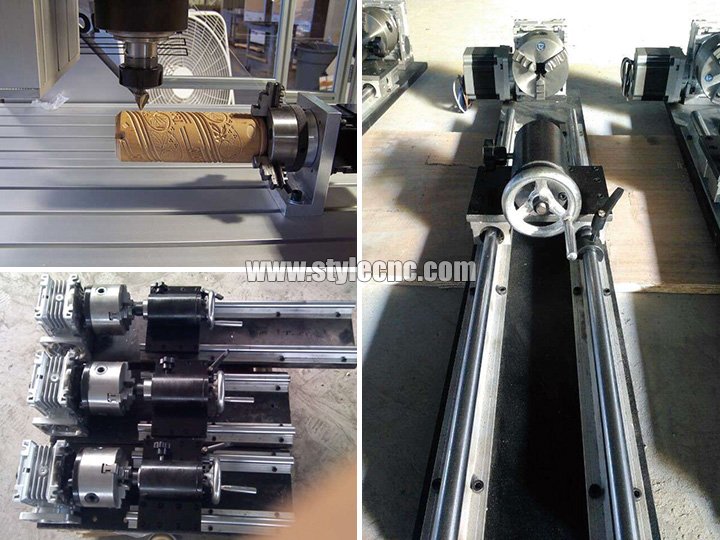

Generally, add a rotation axis on the 3 axis 數控雕刻機套件, also called A axis, that is, 4th rotary axis 數控雕刻機. How to distinguish a real 4 axis 數控雕刻機套件? We give a common example of 4 axis3D圓柱路由，由一個圓形短棍切割或雕刻一個3D佛祖，這個作品有4個軸，但只與三軸數控系統配合使用，它使用X軸或Y軸來驅動旋轉軸，真正的工人是三軸數控機床或旋轉四軸數控機床。
四軸數控雕刻機

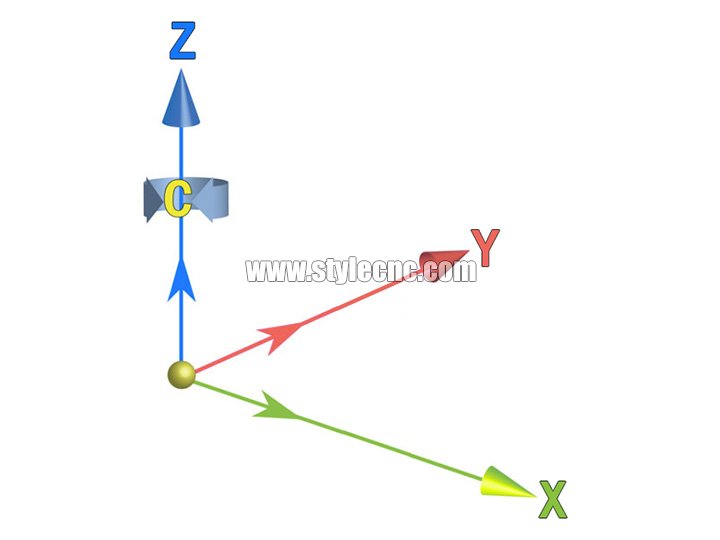

4 axis 數控雕刻機 makes work possible on both sides, which is not on 3 axis 數控雕刻機. The 4 axis數控machine tools also have X, Y, Z axis, it refers to the X-Y-Z-A, X-Y-Z-B, X-Y-Z-C, 4 axis are linked, the 4 axis can work at the same time.
四軸 VS 第四軸
4軸是指機床同時進行X、Y、Z、A軸的運動，4軸代表機床上的4個方向，通常X軸代表左右方向，Y軸為前后方向，Z軸為上下方向，A軸為旋轉軸正負方向，第4軸是指機床只能同時進行X、Y、Z、A軸的運動。
3 axes cannot execute the link of 4 axes simultaneously. The 4th axis 數控雕刻機 is roughly divided into 2 types, one is a 4th axis flat-plane router machine, and the other is a 4th axis3D數控雕刻機. As the name suggests, the 4th axis flat-plane router machine only carves or cuts on one side in the material.
第4軸3D加工意味著機器可以執行3D旋轉雕刻或切割，但 3 個軸 X、Y 和 Z 中的一個轉換為 A 軸進行路由。我們解釋這兩種類型的3D從不同角度看數控機床：
1、概念上，4axis與4th axis的區別在于X,Y,Z,A4軸聯動是否可以同時執行。
2、從機床的控制系統上看，四軸數控機床采用4軸聯動系統，第4軸采用4軸聯動系統。
3、4軸聯動系統根據機器的運動信號采用4軸信號傳輸，信號損耗小，3軸聯動采用3軸信號傳輸，比4軸少一個信號。
4、從雕刻效果來看，4軸比4軸加工點更多，加工更均勻，死角更小，外觀更美觀。
5、與機床方向不同。4軸刀尖指向的方向可以隨時改變。第4軸的刀尖始終指向工件的中心。4軸比4軸更先進，更可靠。4軸是機床的發展趨勢。3D數控雕刻機. The important thing is that more than 60% 的3D數控雕刻機 on the market are 4th axis. When choosing a 4-axis3DCNC機床，不僅要分清4軸和4th軸，還要分析自己的加工情況，比如工件的尺寸，重量，硬度，加工方法等。
四軸數控雕刻機
These routers are somewhat like the 3, 4 axis數控machine kit, but they have 2 additional axis they can move along. These additional axis allow for shorter project time due to their capability of cutting 5 edges of the material simultaneously. However, due to the fact that these machines have a longer X-axis, it makes for less stability and accuracy-potentially requiring more of your attention than a 3, 4 axis 數控雕刻機套件.
五軸數控加工中心具有高效、高精度的特點，工件一次裝夾即可加工五面體。如果配備5軸聯動高端數控系統，還可對復雜空間曲面進行高精度加工，更適合汽車零部件、飛機結構件等現代模具的加工。2軸立式加工中心的回轉軸有5種方式，一種是工作臺回轉軸，設置在床身上的工作臺可以繞X軸回轉，定義為A軸，A軸一般工作范圍為+30度至-120度。工作臺中間還有一個回轉工作臺，在圖示位置繞Z軸回轉，定義為C軸，C軸回轉 360°這樣，通過A軸和C軸的組合，除了工件底面固定在工作臺上，5軸加工中心外，其余5個面都可由立式主軸加工。A軸和C軸的最小分度值一般為0.001度，這樣就可以對工件進行任意角度的細分，可以加工斜面、斜孔等。如果A軸和C軸與X、Y、Z3個直線軸聯動，則可以加工復雜的空間曲面。當然，這需要高檔數控系統、伺服系統和軟件的支持。這種布置方式的優點是主軸結構比較簡單，主軸剛性很好，制造成本比較低。但一般工作臺不能設計太大，承重能力也較小，特別是當A軸旋轉大于或等于90度時，工件在切削時會給工作臺帶來很大的承重力矩。另一種是依靠立式主軸頭的旋轉，主軸前端為回轉頭，可繞Z軸旋轉 360° 成為C軸?；剞D(zhuǎn)頭還帶有一個可以繞X軸旋轉的A軸，一般可以達到±90度以上，實現上述同樣的功能。這種設置方式的好處是主軸加工非常靈活，工作臺也可以設計的很大，客機巨大的機身、巨大的發動機殼體都可以在這種類型的加工中心上加工。這種設計還有一個很大的好處：當我們用球面銑刀加工曲面時，當?shù)毒咧行木€(xiàn)垂直于加工表面時，由于球面銑刀頂點的線速度為零，頂點切削的工件表面質量會很差。采用主軸回轉的設計，使主軸相對工件旋轉一個角度，使球面銑刀避開頂點切削，保證一定的線速度，提高表面加工質量。這種結構對于模具的高精度曲面加工很受歡迎，這是轉臺式加工中心難以實現的。為了達到旋轉的高精度，高端的旋轉軸還配有圓光柵反饋，分度精度在幾秒之內。當然，該類主軸的旋轉結構比較復雜，制造成本也較高。
真五軸 VS 假五軸
真5軸有RTCP功能，可以根據主軸擺長和旋轉工作臺機械坐標自動轉換，編制程序時只需要考慮工件坐標，不需要考慮主軸擺長和旋轉工作臺位置。是否是真5軸，和5軸是否聯動沒有關系，假5軸也可以是5軸聯動，主軸如果帶RTCP真5軸算法，就是做分度加工，帶RTCP功能的真5軸只需要設定一個坐標系，對刀具只需要設定一次坐標，假5軸省事很多。
The數控system with RTCP function can directly use the tool tip programming without considering the center distance of the rotating axis. After applying RTCP mode, programming 5-axis數控machining can directly target the tool tip instead of the center of the rotating spindle head, so programming will become much simpler and more efficient.
對于偽5軸雙轉臺，需要設置多個坐標才能達到分度加工的目的。但如果是5軸擺頭，則無法完成分度加工，因?yàn)?軸擺頭在向下加工時并不是單一的Z運動，而是Z隨X或Y一起移動。此時偽5軸編程會很麻煩，調試起來也會比較困難，而且此時也無法使用3軸偏置功能。
Which 數控雕刻機 Is Ideal For You?
While these routers seem somewhat straight forward with what they can accomplish, they are very delicate and advanced pieces of technology. If you are looking to get more creative with your designs, it is recommended you invest in a 4 axis or 5 axis 數控雕刻機套件, but 3 axis or 4th axis 數控雕刻機套件 are often more affordable.
現在您已經了解了雕刻機的工作原理，您可以更好地理解不同型號之間的差異。
5 axis數控machines can cut along 2 additional axis than 3 axis數控machines. These routers have the ability to cut on 5 sides of a piece of material simultaneously, which expands the operator’s capabilities and flexibility. Unlike their 3 axis counterparts, these machines are usually used to cut large3D零件。此外，五軸數控機床具有更高的龍門架和更長的 X 軸，這使得它們能夠切割更大的零件；然而，這需要付出巨大的代價；龍門架越高、X 軸越長，這些機床的精度和穩定性就越低。為了進行適當?shù)馁|(zhì)量控制，應盡可能限制龍門架的 h8 和 X 軸的長度。
Although routers seem like simple machines, they are highly sophisticated pieces of technology that require a certain level of expertise to operate. 5 axis數控machines tend to be more expensive than traditional 3 axis types, but ultimately offer greater flexibility and enable users to be more creative with their designs.
您需要多少個軸？
You may have seen references to 數控雕刻機 offering seven, 9 or even eleven axis. Although that many additional axis may seem difficult to envision, the explanation for such staggering geometries is actually quite simple.
當您處理具有多個車削主軸的機器時，您可能會說，您已經擁有更多軸。
例如，我們有配備第二主軸和下部轉塔的機器。在這些機器上，您將擁有多個軸：頂部轉塔將有 2 個軸，下部轉塔有 4 個軸，然后您還有同樣有 2 個軸的對置主軸。這些機器最多可以有 2 個軸。
A component, like an aerospace valve might be done on a 5 axis數控machine. Or we could do that part on a multi-axis 數控雕刻機 that has a rotary B-axis and twin spindles for 2 C-axis, plus X, Y and Z. There's also a lower turret that gives you a 2nd X and Z. So it gives you more axis, but the part itself is the same geometry.
那么您的業務需要多少個軸？
正如制造業中常見的情況一樣，這個問題的答案取決于您的具體應用。請看以下示例：
渦輪葉片是一種自由曲面，可能相當復雜。精加工這種葉片的最有效方法是使用五軸，使刀具沿葉片翼型螺旋狀移動。如果您將葉片索引到某個位置，然后使用 3 個線性軸對其進行表面加工，則可以使用三軸進行加工，但這通常不是最有效的方式。
零件的幾何形狀將告訴您是否需要 3、4 或五軸配置。
然而，重要的是要記住，您需要的軸數不僅僅取決于一個零件。零件本身會決定很多，但同時也取決于車間想要完成的任務。
A customer might bring me a part, say a titanium aerospace bracket, and I might say, That's a perfect part for a 5 axis 數控雕刻機, but they might be planning on making parts that would work better on one of our machines. That multi-function machine might not be optimized the same way a 5 axis數控machine is, but it may give the customer opportunities for doing lathe, shaft or chucker work that's part of their long-term plan.
另一件需要考慮的事情是工作范圍，您可以放入機器的最大零件尺寸是多少，同時仍可進行工具更換和零件轉移？這是了解數控機床的功能以及它能做什么和不能做什么。
