什么是數控機床？

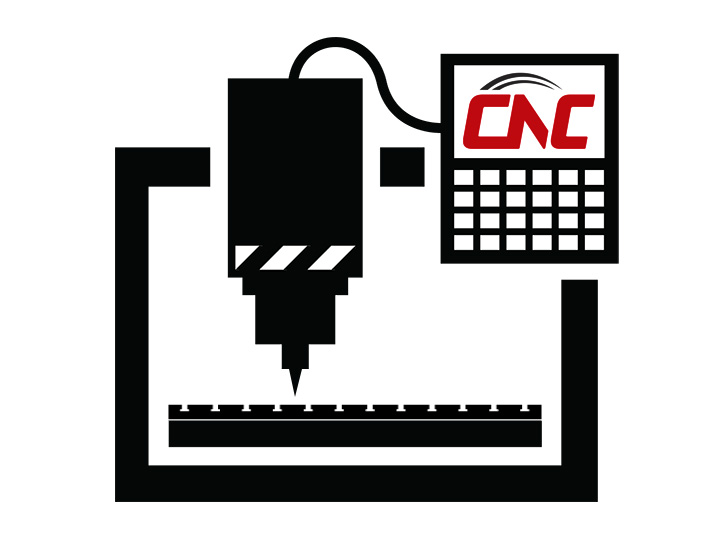

A 數控機床 是一種數控機床，具有機載計算機的附加功能。計算機稱為機器控制單元 (MCU)。生產零件所需的數值數據以程序的形式提供給機器。程序被轉換成適當?shù)碾娦盘?hào)，輸入到運行機器的電機中。

The machine frame bed is the mechanical structure of the數控machine, and it is also composed of the main drive system, feed drive system, bed, workbench and auxiliary motion devices, hydraulic and pneumatic systems, lubrication systems, cooling devices, chip removal, protection systems and other parts. But in order to meet the requirements of numerical control and give full play to the performance of the machine tool, it has undergone great changes in the overall layout, appearance, structure of the transmission system, tool system and operating performance. The mechanical parts of數控machines include bed, box, column, guide rail, worktable, spindle, feed mechanism, tool exchange mechanism.

數控機床如何工作？

數控machines use computers to realize the technology of digital program control. This technology uses a computer to execute the sequential logic control function of the movement track of the device and the operation of the peripherals according to the control program stored in advance. As a computer is used to replace the original numerical control device composed of hardware logic circuits, the storage, processing, calculation, logical judgment and other control functions of the input operation instructions can be realized by computer software, and the micro-instructions generated by the processing can be transmitted. Drive the motor or hydraulic actuators to the servo drive device to drive the數控machine to run.

In order to run a數控machine, you can go through the following steps:

第一步、根據加工零件的圖紙和工藝方案，用規定的代碼和程序格式，把刀具的運動軌跡、加工過程、工藝參數、切削用量等編成數控系統能夠識別的指令形式，即編寫加工程序。

Step 2. Input the programmed processing program into the數控device.

Step 3. The數控device decodes and processes the input program (code), and sends corresponding control signals to the servo drive device and auxiliary function control device of each coordinate axis to control the movement of each part of the machine tool.

Step 4. In the movement process, the數控system needs to detect the coordinate axis position of the數控machine, the state of the travel switch, etc. at any time, and compare it with the requirements of the program to determine the next action until a qualified part is processed.

Step 5. The operator can observe and check the processing conditions and working status of the數控machine at any time. If necessary, it is necessary to adjust the數控machine action and processing program to ensure the safe and reliable operation of the machine tool.

直角坐標系

幾乎所有傳統機床能生產的產品都可以在計算機數控機床上生產，而且它具有許多優點。生產產品時使用的機床運動有兩種基本類型：點對點（直線運動）和連續路徑（輪廓運動）。

笛卡爾坐標系或直角坐標系是由法國數學家和哲學家勒內·笛卡爾發明的。使用該系統，任何特定點都可以從 3 個垂直軸上的任何其他點以數學術語描述。這個概念非常適合機床，因?yàn)樗鼈兊慕Y(jié)構通常基于 3 個運動軸（X、Y、Z）加上一個旋轉軸。在普通立式銑床上，X 軸是工作臺的水平運動（向右或向左），Y 軸是工作臺橫向運動（朝向或遠離立柱），Z 軸是膝蓋或主軸的垂直運動。數控系統嚴重依賴直角坐標的使用，因?yàn)槌绦騿T可以精確定位作業上的每個點。當在工件上定位點時，使用 2 條直線相交線，一條垂直，一條水平。這些線必須彼此成直角，它們相交的點稱為原點或零點（圖 1）

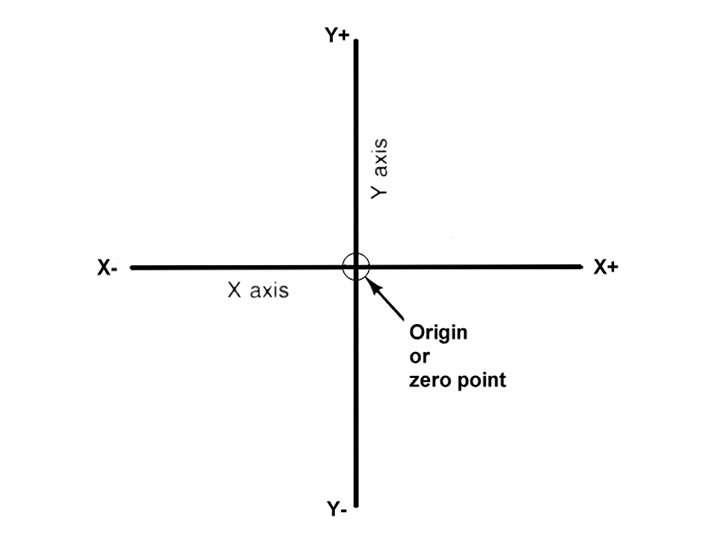

圖 1 相交線形成直角并確定零點。

Fig. 2 The 3-dimensional coordinate planes (axis) used in數控.

三維坐標平面如圖 3 所示。X 和 Y 平面（軸）是水平的，表示水平機床工作臺運動。Z 平面或軸表示垂直刀具運動。加號 (+) 和減號 (-) 表示從零點（原點）沿運動軸的方向。XY 軸交叉時形成的 2 個象限按逆時針?lè)较蚓幪?hào)（圖 4）。位于象限 3 的所有位置均為正 (X+) 和正 (Y+)。在第 1 象限中，所有位置均為負 X (X-) 和正 (Y+)。在第 2 象限中，所有位置均為負 X (X-) 和負 (Y-)。在第 3 象限中，所有位置均為正 X (X+) 和負 Y (Y-)。

圖 3 X 軸和 Y 軸交叉時形成的象限用于精確定位距離 X/Y 零點或原點的點。

In Fig. 3, point A would be 2 units to the right of the Y axis and 2 units above the X axis. Assume that each unit equals 1.000. The location of point A would be X + 2.000 and Y + 2.000. For point B, the location would be X + 1.000 and Y - 2.000. In數控programming it is not necessary to indicate plus (+) values since these are assumed. However, the minus (-) values must be indicated. For example, the locations of both A and B would be indicated as follows:

X2.000 Y2.000

BX1.000 Y-2.000

計算機系統與由傳感器和電力驅動器組成的機器相連。程序控制機器軸的運動。

What Are The Most Common Types of數控Machines?

早期機床的設計是操作員站在機床前面操作控制裝置。這種設計不再必要，因?yàn)樵跀?shù)控中，操作員不再控制機床運動。在傳統機床上，只有大約 20% 的時間用于去除材料。隨著電子控制裝置的加入，實際去除金屬的時間增加到 80% 甚至更高。它還減少了將切削刀具送入每個加工位置所需的時間。

There are 10 most common types of數控machines that present in a variety of industries.

1.數控銑床（數控銑床)

2. 數控雕刻機 (數控雕刻機)

3. 數控激光機 （激光切割機、激光雕刻機、激光焊接機）

4.數控車床（數控車床)

5.數控鉆床（CNC鉆床）

6.數控鏜床

7.數控磨床（CNC磨床）

8.電火花加工機（EDM）

9.數控等離子切割機（數控等離子切割機)

10.3D打印機
